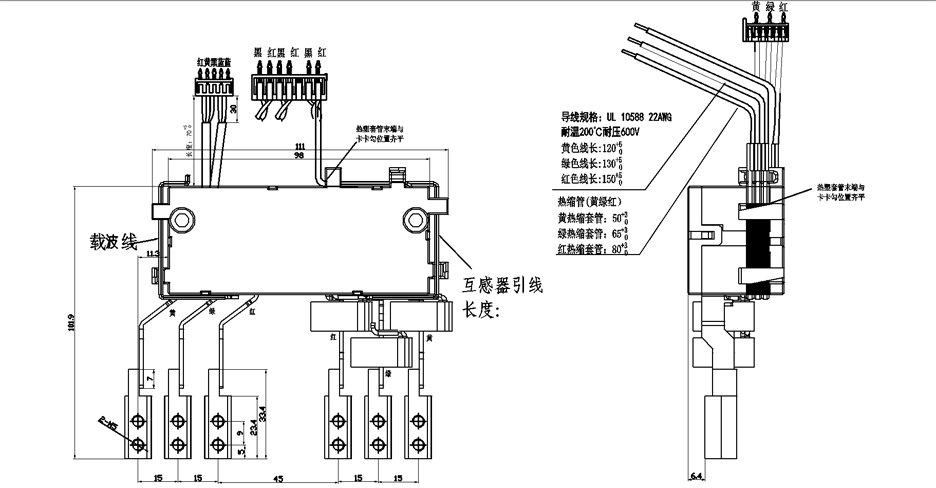

外形尺寸Dimensions（mm）

98×40.5×36

触点形式 Contact Form

3A/3B

触点材料 Contact Material

银合金 (Silver Alloy)

最大切换电流 Max Switching Current（阻性 Anti-load）

80A

最大切换电压Max Switching Voltage

250VAC

最大切换功率Max Switching Power

20000VA

重量Wight

         g

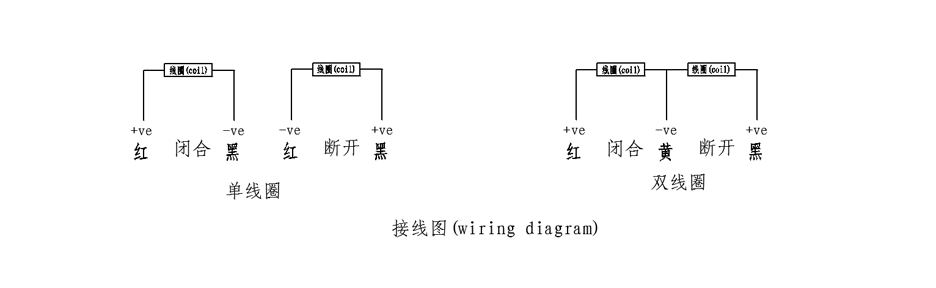

线圈额定电压 Rated Coil Voltage

9VDC

12VDC

24VDC

48VDC

线圈电阻

Coil Resistance

单线圈Single Coil（±10%Ω）

27

48

192

768

双线圈Double Coil±10%Ω）

13.5

24

96

384

闭合电压 Pick-up Voltage

≤75%额定值（Rated Coil Voltage ）

断开电压 Drop-out Voltage

≤75%额定值（Rated Coil Voltage ）

过载电压 Max. Applicable Voltage

 ≤120%额定值（Rated Coil Voltage）

闭合时间Pick-up Time (At Rated Voltage)

≤30ms

断开时间Drop-out Time (At Rated Voltage)

≤30ms

回跳时间 Bounce Time

≤2ms

环境湿度 Ambient Humidity

年平均≤75%（Annually average)

抗振动 Anti-vibration

10~55Hz,0.5mm (Double Amplitude)

抗冲击 Anti-shock

98m/s²,11ms

相对湿度R.H.

5%~85%

接触电阻 Contact Resistance

≤2.0mΩ (1A/6VDC测试)

产品认证

UC3/RoHS/TUV

介质耐压   Dielectric Strength

触点间 Between Contacts

2000VAC 50/60Hz (1 Minute)

触点组间耐压 Between Contacts&Contact

4000 VAC 50/60Hz (1 Minute)

寿命Life

电气寿命Electrical Life

≥1ⅹ10⁴OPS

机械寿命 Mechanical Life

≥1ⅹ10⁵OPS
